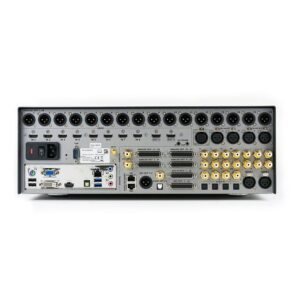

Trinnov Altitude32

Specificaties

OBJECT BASED DECODING (ALL VERSIONS)
Dolby Atmos® Native Decoding & Up-mix: Up to 34 discrete channels
Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
DTS:X® Pro Native Decoding & Up-Mix: Up to 30.2
Speaker Layouts support: All
IMAX Enhanced: Yes
CHANNEL BASED AUDIO DECODING
Dolby: Digital®, Digital Plus®, TrueHD®
DTS: Digital Surround®, High Res Audio®, HD Master Audio®
PCM: Up to 24 bits / 192 kHz
Roon: YES
CHANNEL CAPABILITIES
Max Channels: x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
Max Optimizer Channels: x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
Max Subwoofers: x12 (8-8), x20 (8-16), x28 (16-24), x36 (24-32)
Max Crossovers (2/3/4 way): 6/4/3 (8-8), 10/6/5 (8-16)
Max Crossovers (2/3/4 way): 14/9/7 (16-24), 18/12/9 (16-32)
Full Input / Output Matrix (all versions): Yes
Configuration presets (all versions): 29
HDMI CONNECTIVITY
Output 1: HDMI 2.1 / HDCP 2.3
Output 2: HDMI 2.1 / HDCP 2.3
Inputs: 8
Maximum resolution: 4K 120Hz/8K 60Hz
Maximum bandwidth: 40Gbps on all inputs and outputs
Frame rates supported: 4K 24/25/30/48/60/100/120, 8K 24/25/30/48/60
ARC / eARC: Available on Output 1
OSD: Main information displayed on-screen
HDR Support: HDR10, HDR10+, HLG and Dolby Vision
DIGITAL AUDIO CONNECTIVITY
S/PDIF Inputs: x4 (2 optical, 2 coaxial)
S/PDIF Outputs: x2 (1 optical, 1 coaxial)
AES3 Inputs (XLR): x2
AES3 Outputs (XLR): x1
AES3 Outputs (DB25) – 8-8 & 8-16: x8 upgradeable to 16
AES3 Outputs (DB25) – 16-24 & 24-32: x16
AES3 Input Compliance: DCI
Audio Network: Dual ports (for future use)
ANALOGUE AUDIO CONNECTIVITY
Microphone input: 1x 5 Pin XLR for 3D Microphone
Balanced inputs: 2x Stereo XLR
Unbalanced inputs: 3x Stereo RCA, 1x 7.1 RCA
Balanced outputs: x8 (8-8), x16 all other models
Unbalanced outputs: 1x stereo RCA
DB25 Analogue outputs: x8 (8-8), x16 (8-16), x24 (16-24), x32 (24-32)
AUDIO PROCESSING
Data precision: 64 bits, floating point
Max Sampling Rate (up to 24 channels): Native, up to 192kHz
Max Sampling Rate (up to 32 channel with +4 option): Native, up to 96kHz
Max Sampling Rate (above 24 channels): Native, up to 96kHz
Max Sampling Rate (above 32 channels): Native, up to 48kHz
HARDWARE
Processor: Intel multi core hyper threaded
ADC Resolution / Sampling Rate: 24 bits/96 kHz
DAC Resolution / Sampling Rate: 24 bits/192 kHz
A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter: attenuation > 50 dB above 100Hz
Cooling system: Custom heat sinks & silent fans
Safety Components: AntiPop relays on each output
POWER SUPPLY
Power requirement: 240V / 110V – 50 / 60Hz (Manual Switch)
Power consumption: 132W Max
Thermal conversion: 450 BTU/h Max
Mains fuse: 2A Slow Blow
Internal PSUs: Separated supplies for Audio and Processing
WEIGHT & DIMENSIONS
Dimensions (W x H x D) mm: 442 x 165 x 445
Dimensions (W x H x D) inches: 17 7/16″ x 6 1/2″ x 17 9/16″
Shippind dimensions (L x H x P) cm: 74 x 59 x 30
Weight: 14.5kg / 32 lbs
Shipping weight / volume: 22.2kg / 0.131M3
Rackmounting: 3.5U – Rack Ears Included
WARRANTY
Standard Warranty: 5 year
Transferable: Yes
Warranty Extension Program: Yes
CHASSIS
Standard Color: Black
Optional Color: Silver
